ISP Network Access Intelligent Multi-WAN Authentication Gateway & Controller

Features:

Multi WAN ports for different ISP access and load balance function

AC7000 with multi Gigabit WAN ports up to 4 to allow different ISP access, and the load balance function to avoid bandwidth overload,Route backup function to recover the dropped networking line to ensure the whole networking smoothly;

Auto detect and manage wireless AP up to 300PCS

1. Automatically detect and allocated IP address for wireless AP: AC7000 can detect the working AP and allocate the IP address for them, then configure and manage the AP centralized, even Zero configuration available to make wireless AP plug and play.

2. Centralized Manage and Control: AC7000 can configure AP's SSID, Password, Channel, QTY of access end users, then reboot, reset, firmware upgrade; Manual adjust AP's coverage threshold and transmission power, to reduce the mutual interference between APs and improve wireless network quality.

3. Real Time Monitor and Analyze: AC7000 will monitor and analyze wireless AP all the time, then show AP’s working status on Web manage page, make maintainer easy to maintain the whole networking.

WEB management interface, and support remote management.

AC7000 support WEB management interface and WEB remote management, we also can configure and manage AC7000 even in another city at any time, Greatly facilitates the adminstrator to maintain a stable network then monitor the AP's working status, greatly saves human, transportation costs

Full Gigabit ports, work as enterprise router in a network

Supports PPPoE, Static IP, Dynamic IP and PPTP, with 5 10/100/1000Mbps RJ45 Port, AC3000 can connect with ADSL/Fiber networking then work as gigabit router in residential or some business area.

Multiple security modes to protect network safety

AC7000 support Tag VLAN binding based on wireless network (SSID), make different wireless network (SSID) to binding different VLAN ID, realize the communication isolation in different wireless networks,to protect networking safety. In addition, AC7000 support multi firewall functions like IP filter,MAC filter, URL filter, port forwarding, DMZ, to allow compliant users to access the wireless network, and ensure that special network application such as FTP, H.323, IPSec/ PPTP VPN, to further protect network security.

Smart Quality of Service(QoS) function

Based on the IEEE 802.11e standard, it provides basic Quality of Service(QoS) features to end users according to IP/MAC address; Besides that, it can control the flow after set priority for instant messaging service, download, video or office

Low power consumption, energy saving and environment protection

AC7000’s running power consumption is lower than 5W, low heat, energy saving and environment protection, can prolong it operation life

Spec:

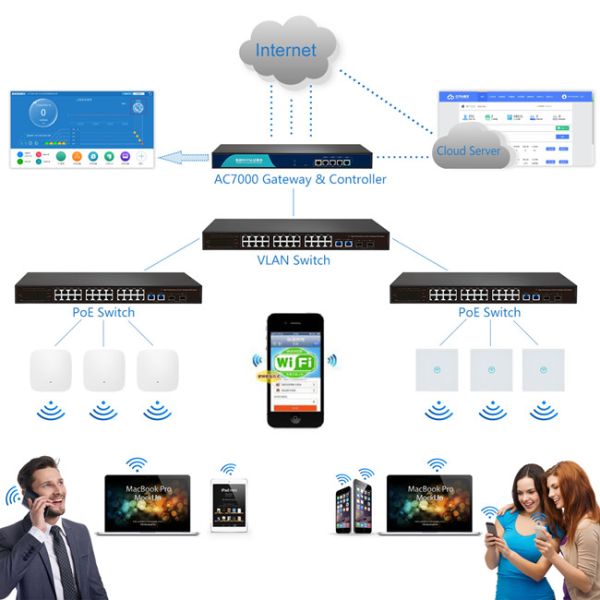

Working Diagram:

wifi lan controller

wireless access point controller
